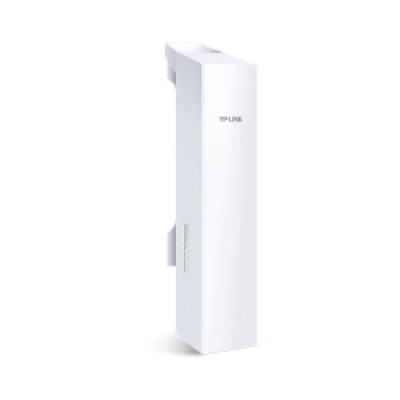

TP-Link bežična pristupna točka vanjska (AP), podrška za Pasive PoE, -CPE220

- Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimization for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves

product performance in throughput, capacity and latency, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Outdoor stabilized enclosure with IPX5 waterproof certification
- Dual Ethernet ports and grounding terminal integrated
- 6000V Lightning Protection, 15KV ESD Protection
- Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
- Selectable bandwidth of 5/10/20/40MHz
- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
- Easy antenna alignment with wireless signal quality indicators via Web interface

HARDWARE FEATURES
- Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM, 8MB Flash
- Interface:
* 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
* 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
* 1 Grounding Terminal
* 1 Reset Button
- Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
- Dimensions (W×D×H): 276×79×60 mm
- Power Consumption: 10.8 Watts Max
** Note: When deployed using Passive PoE, the power drawn from the power

source will be higher by some amount depending on the length of the connecting cable
- Antenna Type:
* Built-in 12dBi 2× 2 Dual-polarized Directional Antenna
* Beam Width: 60° (H-Plane) / 30° (E-Plane)
** Note: For more details, please refer to datasheet
- Protection:
* 15KV ESD Protection
* 6000V Lightning Protection
- Enclosure:
* Outdoor ASA stabilized plastic material
* IPX5 waterproof Certification
